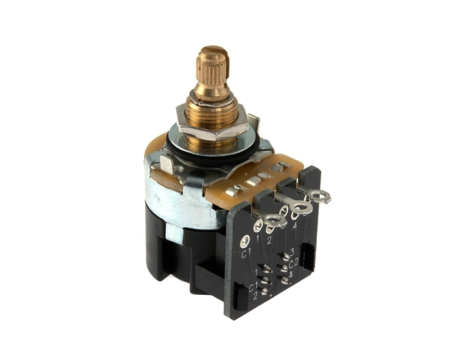

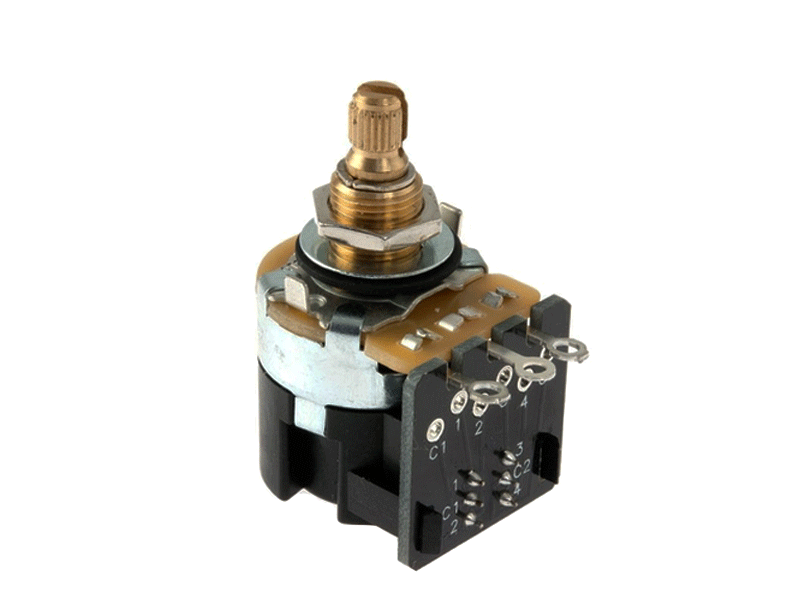

CTS 500K push-pull audio pot (std)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: POT-CTS-PULL18-500A
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Ask about the product
Administratorem danych osobowych jest IN TUNE Robert Wultański. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Share the product card
Product Description

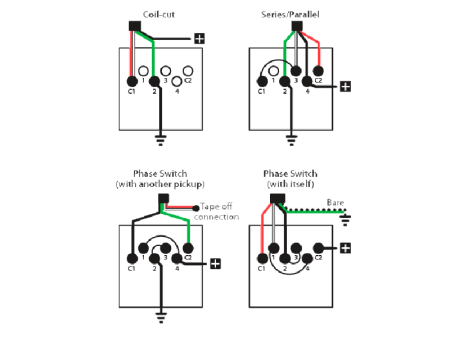

Add a switch to your guitar using the existing holes in your pick guard or body. High quality CTS Push/Pull DPDT switches can be used to add phase switching, coil tapping, series/parallel, etc. to your guitar without having to drill the holes for a mini switch. The shorter body height and side mounted contacts require far less space (1” depth ) making them ideal for thinner bodied guitars with a more shallow body cavity. These Split-shaft pots are compatible with 24- spline, fine knurled knobs and feature a precise audio taper. Hex nuts, flat washer, and lock washer are included with each pot. CTS DPDT pots are available in three types for different applications.
Specification
Pots Specification
- Value 500K
- Characteristics Audio
- Knurl Type 24 Spline (inch)
- Pot Diameter 24mm
- Thread #3/8-32NEF
- Shaft Height Standard (18mm)
- Torque Standard
