SCHALLER STM reverse guitar bridge M5 (RU)

€90.00

with 23% VAT

Shipping costs are not included in the price.

Availability:

Out of stock

Shipping

from €0.00 - InPost Locker (Poland)

Delivery in 1 working day

Ask about the product

Product Description

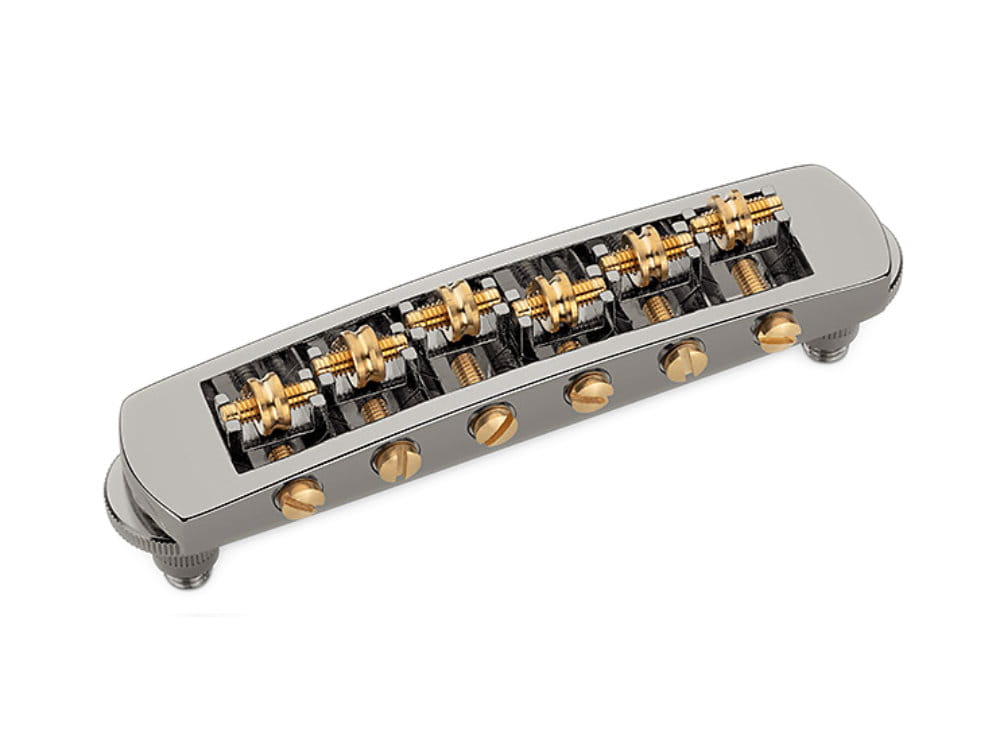

STM: high quality Tune-O-Matic roller bridge for all Les Paul®-style guitars with Bigsby®*
Compatible with post spacings from 74.0 to 74.5 mm
Adjustable for height, intonation and string spacing
Low-friction roller saddles for excellent tuning stability – perfect for Bigsby™* vibratos
Comes with 2 different type saddle rollers to suit tone and string bending requirements: wide flat rollers for low strings (E, A and D) and tight U-shaped for high strings (G, B and E).
Uncoated string saddles milled from solid Pure Sound brass with excellent sound transmission.
Slant angle to be determined by guitarmaker based on scale length and string gauge.
(*Les Paul is a protected trademark of Gibson Brands, Inc. / Bigsby is a registered trademark of Fender® Musical Instruments Corp (FMIC).)

Advantages of Pure Sound brass
Due to its softness, brass is an ideal saddle material and offers sufficient resistance to the strings.
Uncoated brass saddles (plain or notched) can be easily customized by the guitar maker with a saddle file for smooth transitions.
Form-fit support of the components in conjunction with improved string contact thus supports playability, intonation and sustain.

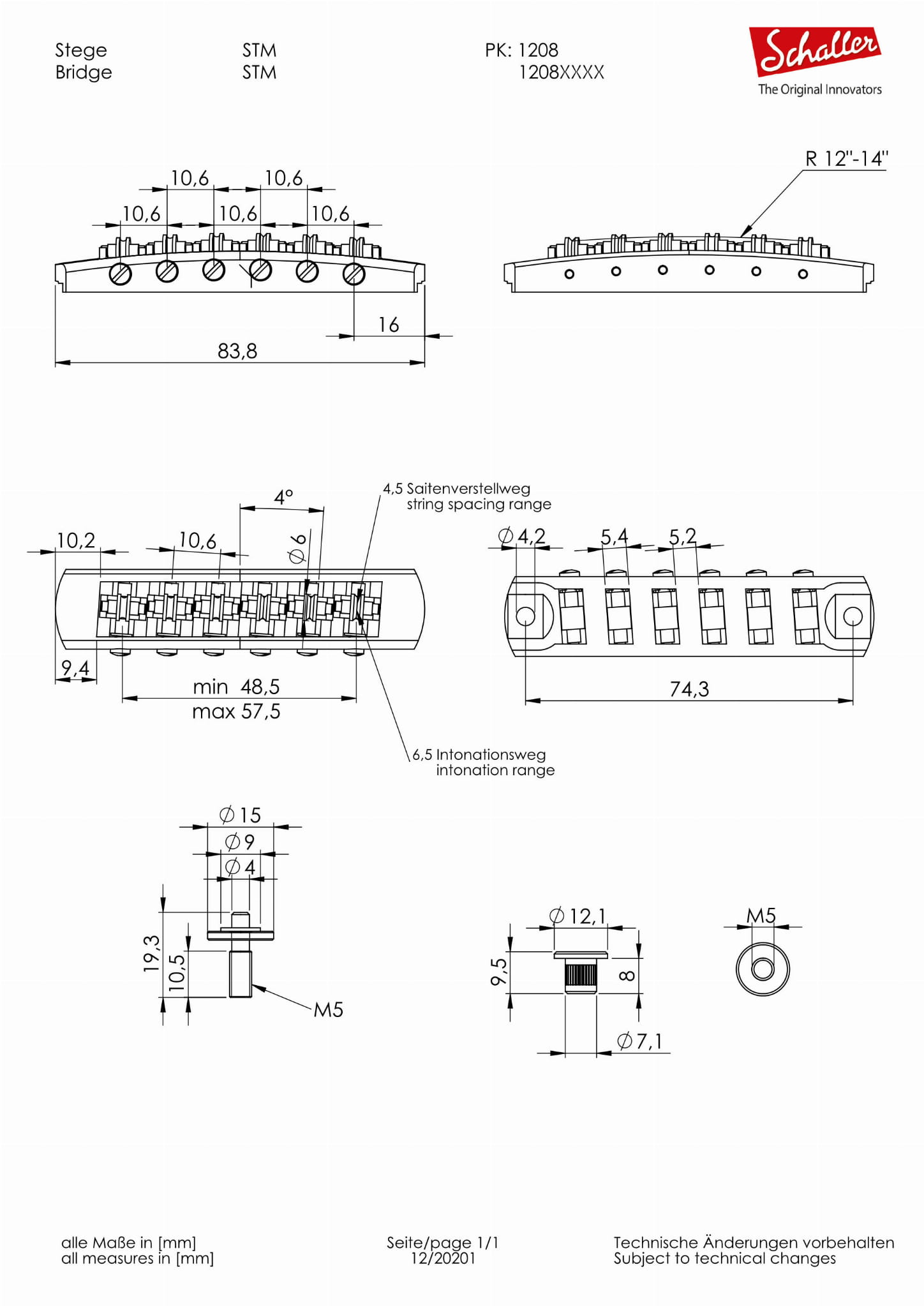

Technical specifications
Distance height adjustment screws: 74 - 74.5 mm
String spacing (E-e): 48.5 - 57.5 mm
String spacing individual: 9.7 - 11.5 mm
String radius: 12″ (rollers set in for narrow/close string spacing) 14″ (rollers set out for wide string spacing); still playable if required for fretboards max. 10 - 16 inches, depending on the setting of the rollers max. inside or outside; minimal G/d string height above body 12.5 mm
Maximum string gauge: 0.052
Weight: 58 gram, 90 gram with accessories

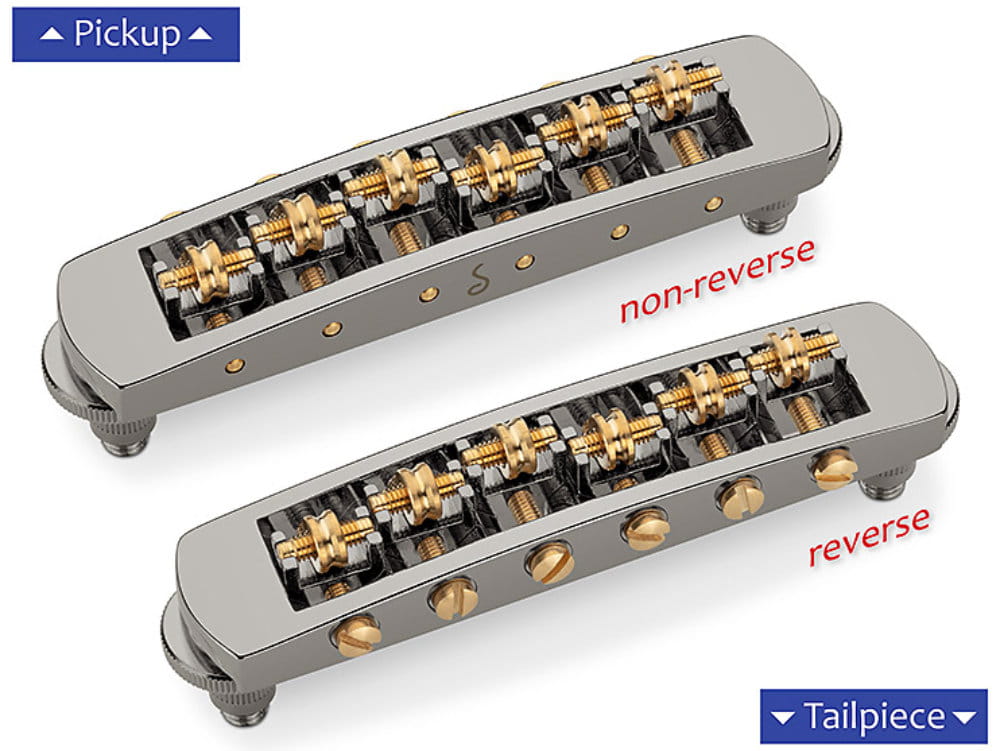

non-reverse: intonations screws point to the pickups
reverse: intonations screws point to the tailpiece.

Made in Germany

Product code: 12080601.11
