ROCKBOARD Bender pedal connector (7,5cm)
0
Description

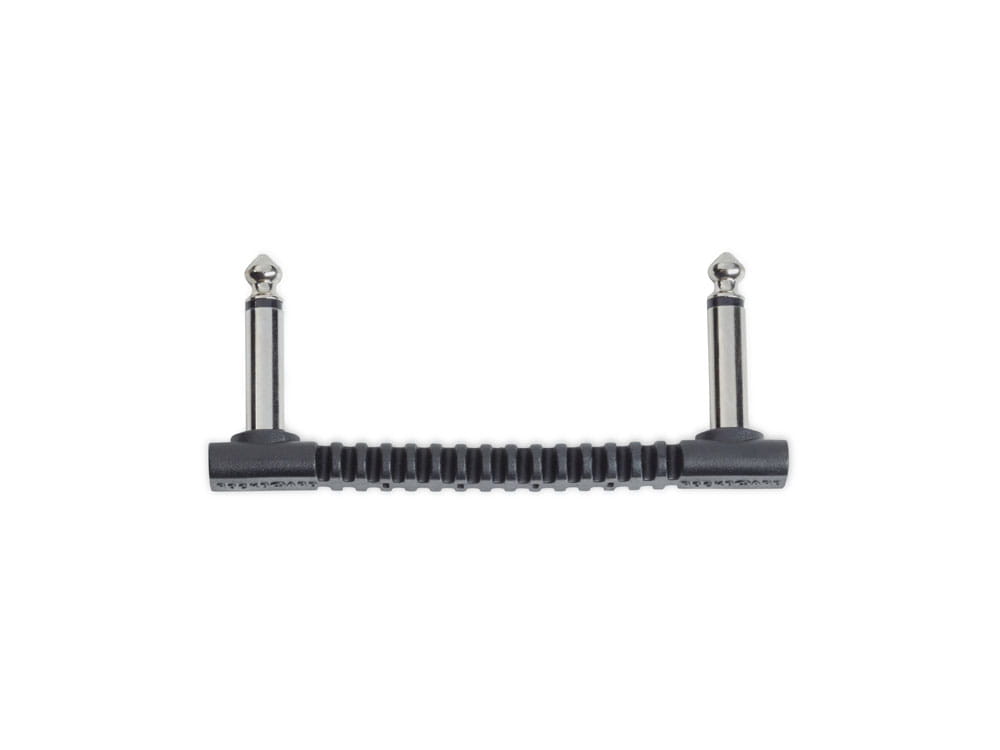

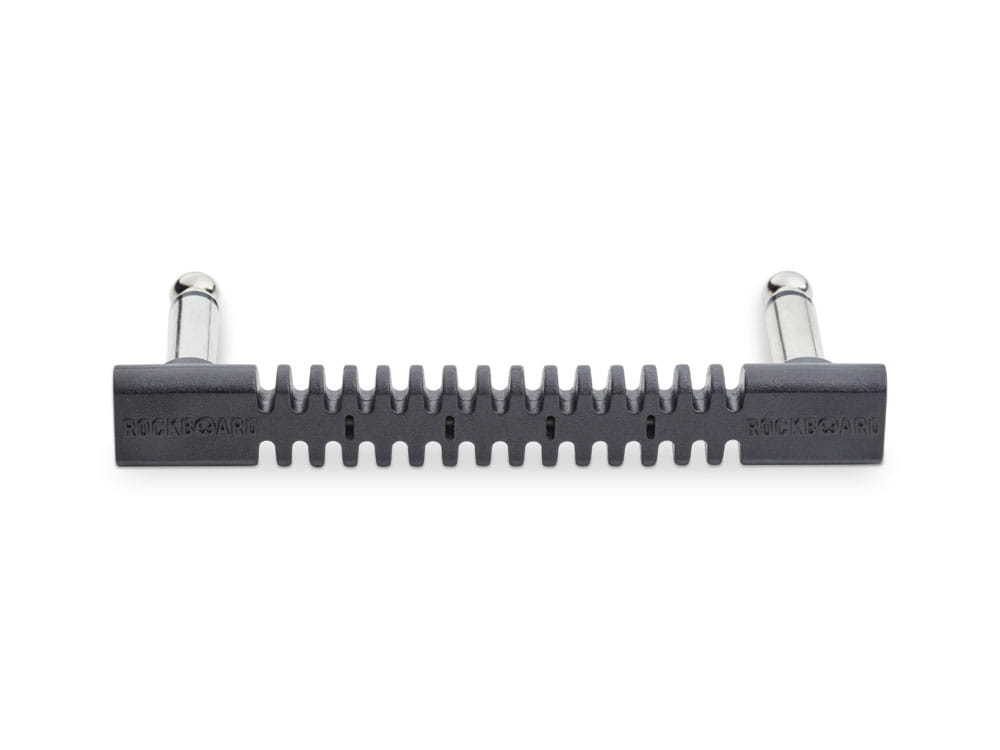

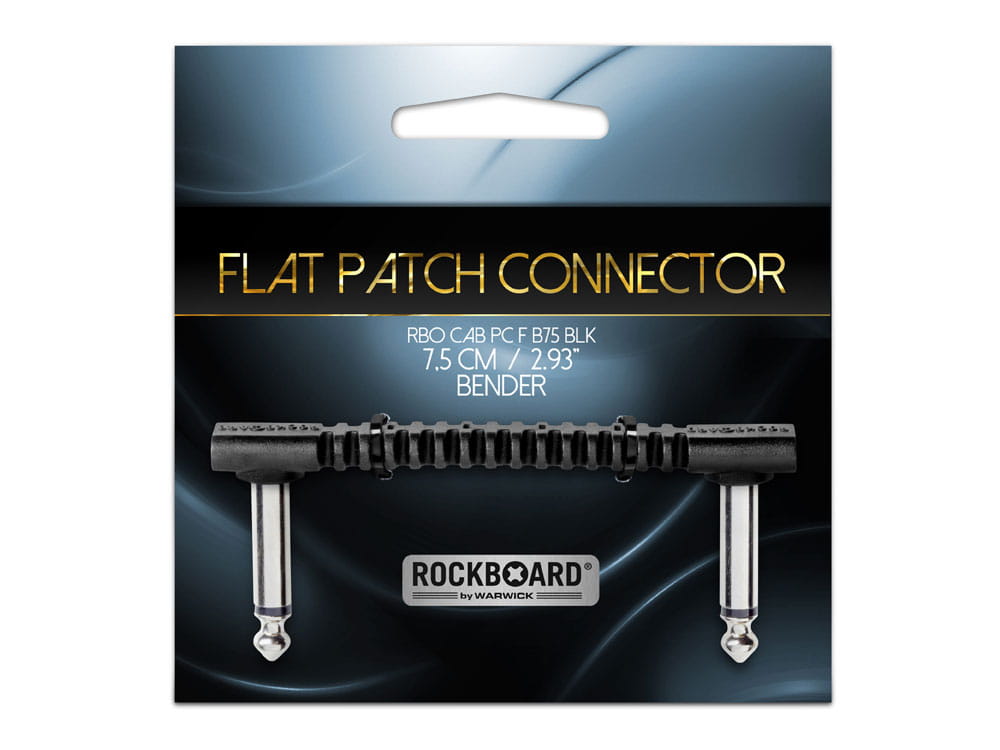

The RockBoard Bender is a super-flexible, 75 mm long pedal connector with an extra-flat profile and features compact angled plugs for optimizing your pedalboard real estate. The 6.3 mm (1/4") Bender connects pedals with side or top-mounted jacks and guarantees a short, clean signal path and pristine signal quality.
- flexible pedal connector
- easily connects top- as well as side-mounted jacks
- bends in every direction
- flexible copper conductor (20 x 0.12 mm / 36 AWG)
- twisted copper shielding (34 x 0.12 mm / 36 AWG)
- PE (polyethylene) signal insulation
- PVC cable mantle
- capacitance less than 10 pF/decimeter
- conductor resistance less than 10 mOhm/decimeter
- angled 6.3 mm mono audio plugs
- operating temperature -15° C to +70° C (5° F to 158° F)
- dimensions (L x W x H) 98 x 12.5 x 7.5 mm (3 55/64" x 31/64" x 19/64")
- length (plug to plug) 7,5 cm / 2 61/64"
- black
Product code: RBO CAB PC F B75 BLK
Technical data
| Connector 1 | Jack mono (angled) |
| Connector 2 | Jack mono (angled) |
| Profile | Flat |
| Colour | Black |
