OAK Grigsby 4-way lever switch (USA)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: SW-LEV-4-OAK
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Ask about the product
Administratorem danych osobowych jest IN TUNE Robert Wultański. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Share the product card
Product Description

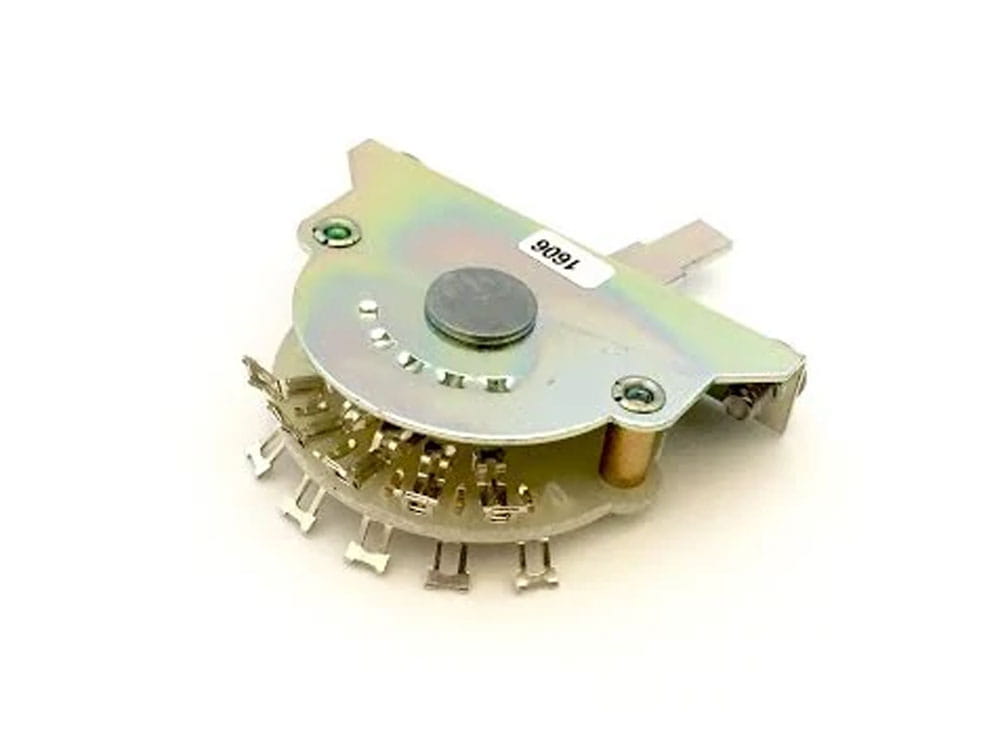

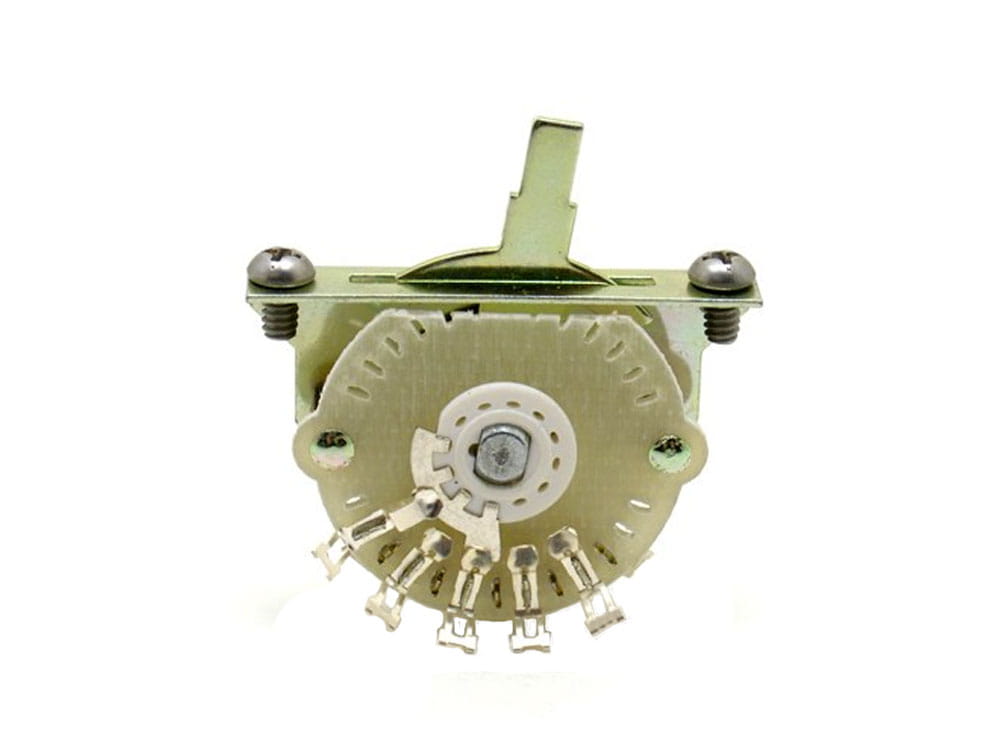

This OAK Grigsby USA 4-way switch for Tele offers the classic 3 position of a normal switch but the 4th position allows both pickups to be played in series, offering a fuller, fatter sound, a little like a humbucker.
This is the same quality switch found in our 4 way Telecaster wiring kit. Installation The 4 way OAK Grisgby switch can be installed either way round - it works both ways.

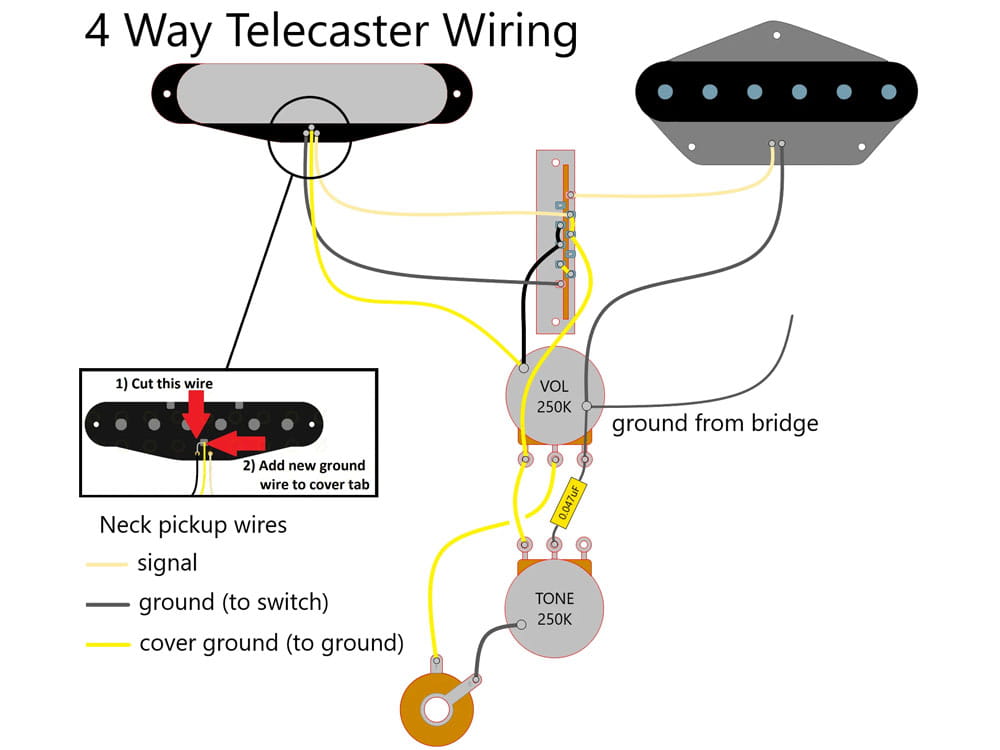

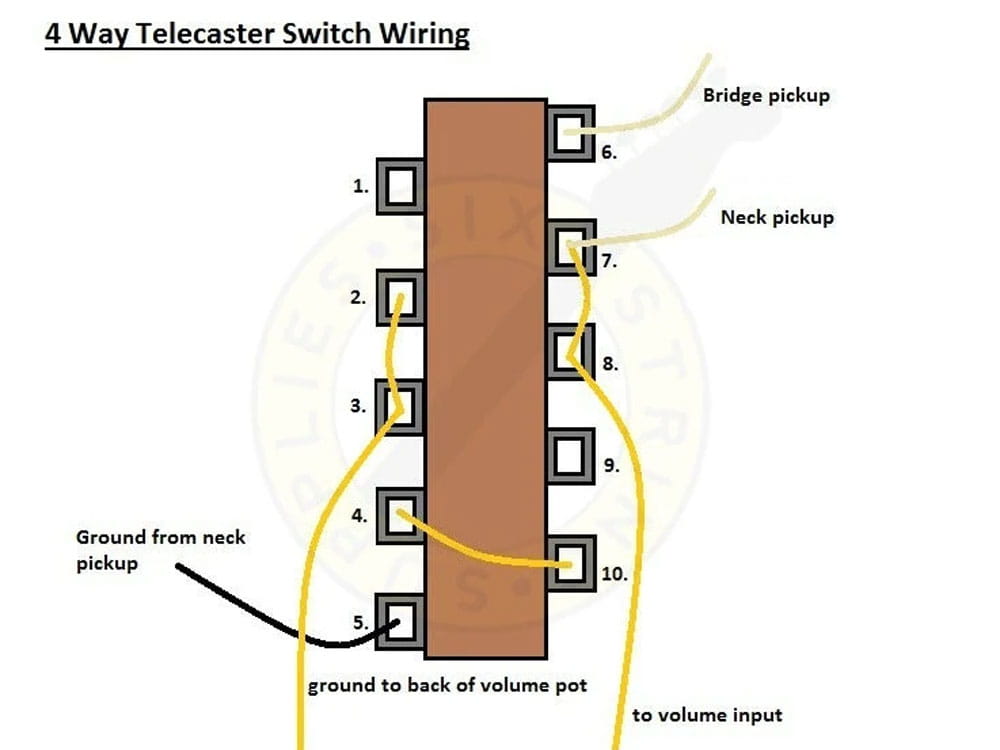

There is a 4 way Tele mod wiring diagram demonstrating how to wire the switch. Minor modification to your neck pickup is required, during which you need to un-ground the metal casing from the pickup and add a third ground wire from the casing to the back of the volume pot.
Dimensions
Centre to centre mounting holes = 41mm
Cavity depth required = 36.5mm
For full installation instructions including how to wire the switch and re-ground the neck pickup, read our step by step guide on the 4 way Tele wiring mod.
Product code: SW-OAK-4
Specification
Switch type
Switch Type - Lever
Switch Colour
