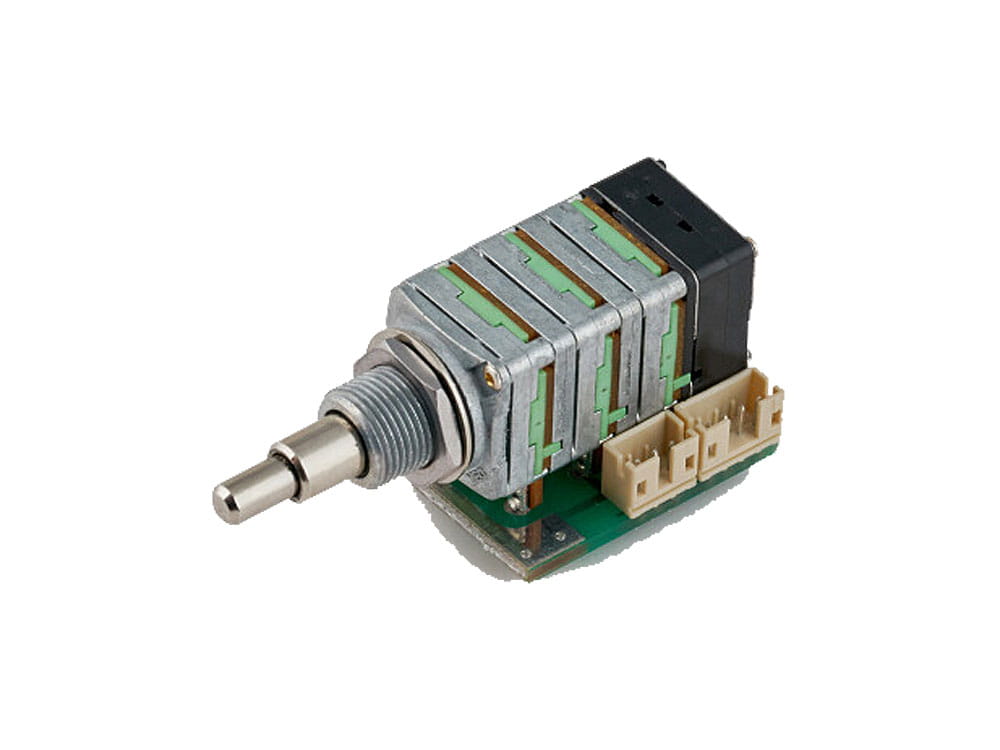

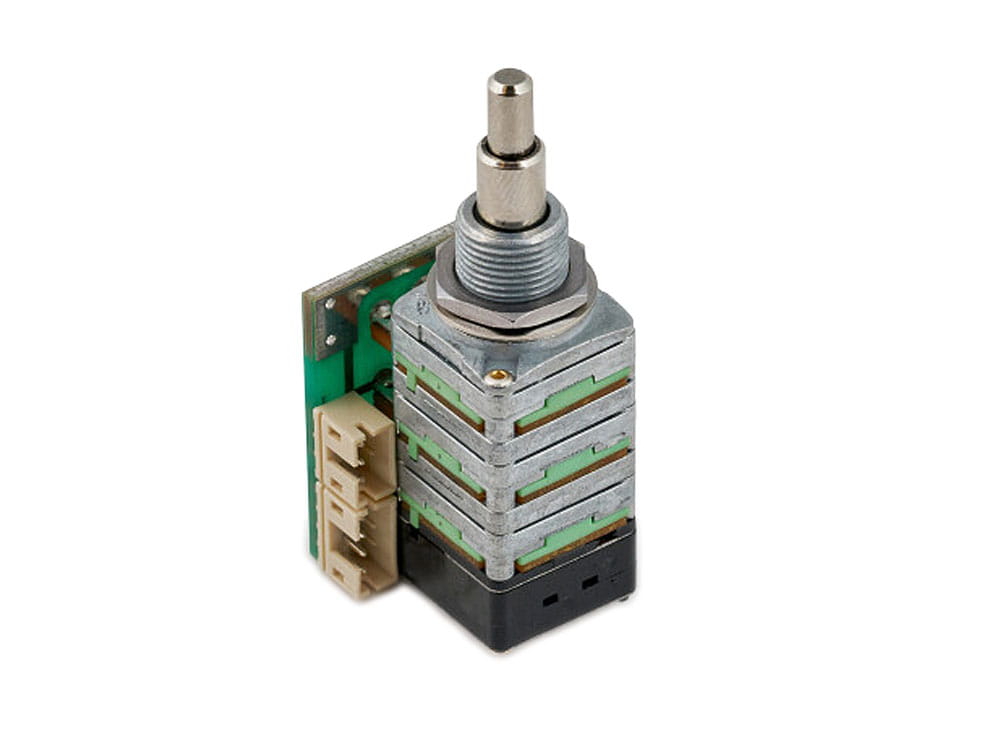

MEC 500/25/25k Push/Pull potentiometer
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M 81SP009
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Ask about the product
Administratorem danych osobowych jest IN TUNE Robert Wultański. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Share the product card
Product Description
- mono + balance stacked potentiometer module with push/pull switch
- concentric shaft
- R1 = B500K (resistance 500 kOhm, (B) linear)
- R2 = 05A25k (resistance 25 kOhm, (A) logarithmic)
- R3 = 05C25k (resistance 25 kOhm, (C) reverse logarithmic)
- pre-fitted with PCB module
- On/On DPDT
- suitable for use as volume (R1) and balance (R2 & R3) control for active pickups
- M10 x 0.75 mm threads
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (inner), 7 mm (outer)
- shaft diameter 4 mm (inner), 6 mm (outer)
- solderless JST R5 2 mm connector
- incl. nut and washer
- dimensions incl. lugs (L x W x H) 24 x 22 x 32 mm
Product code: M 81SP009
Specification
Pots Specification
- Value 500K
- Characteristics Linear
- Knurl Type Solid (metal)
- Thread M10-0.75
- Shaft Height Standard (18mm)
- Torque Standard
Bezpieczeństwo produktu
Manufacturer
MEC Musical Electronic
Landwüster Str. 16
D-08258 Wernitzgrün, Germany
Importer
Warwick GmbH & Co. Music Equipment KG
Gewerbepark 46
08258 Markneukirchen, Germany
