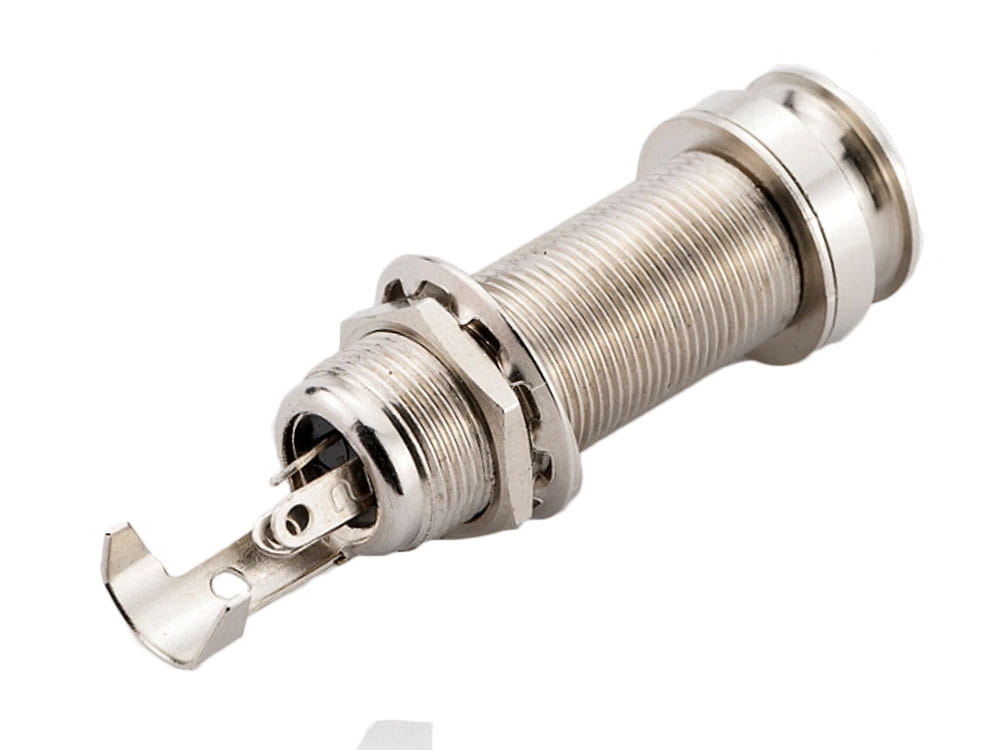

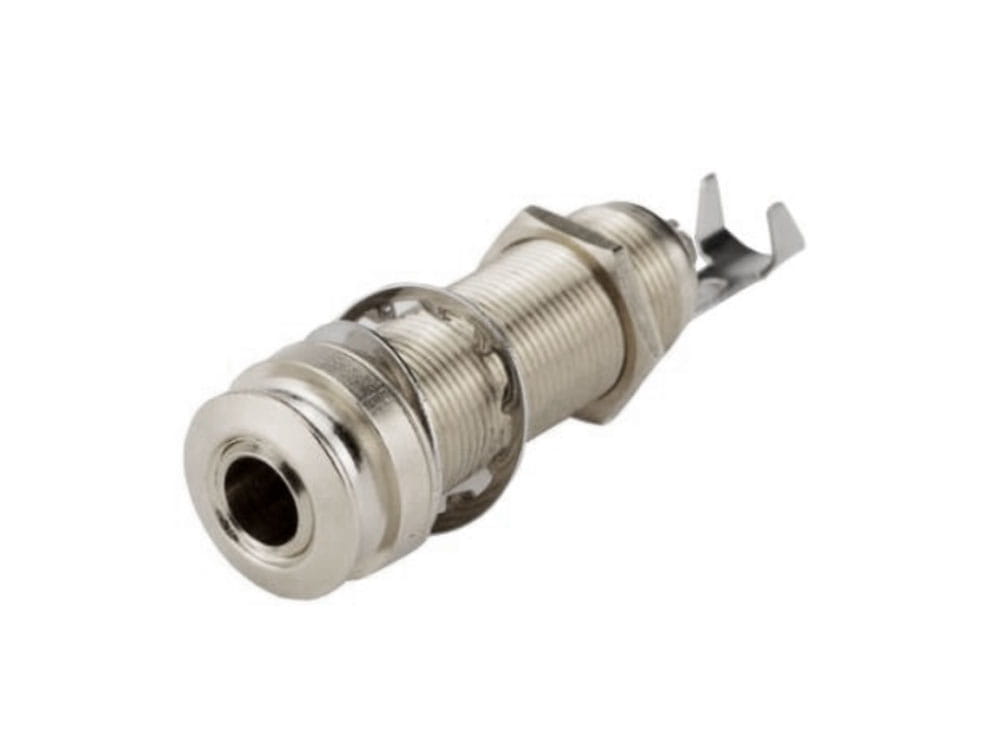

Cylindryczne gniazdo ST PROFESSIONAL 1JP-038 (N)
0
Description
The 1/4" Stereo Acoustic Endpin Jack accepts standard 1/4" instrument cable plugs with an additional 4th pin for battery switching.
The body is made of turned brass gold plated; the contacts are made with special type of material that which guarantees exceptional elasticity and durability.
We tested the parts for mare than 40.000 cycle of insertions (ON/OFF).
It is a long threaded barrel input jack that can be wired mono or stereo.
Requires a 1/2" (12,5 mm) diameter mounting hole.
Includes nut, washer, and strap nut nickel plated for guitar strap.
This product is recommended whenever you want to make a permanent installation, when you want to customize your guitar or to convert your guitar to electric acoustics.
The switch terminal is usually connected to the negative battery wire of an active pickup system.
Features:
Long threaded barrel input jack
Can be wired mono or stereo
Mechanical retention cable system
Handmade in Italy
Product code: 1JP-038
Technical data
| Hardware colour | Nickel (N) |
| Output Jack Type | Endpin |
| Pin Number | 4 contacts (stereo) |
