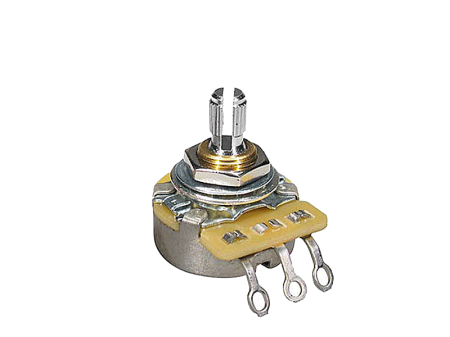

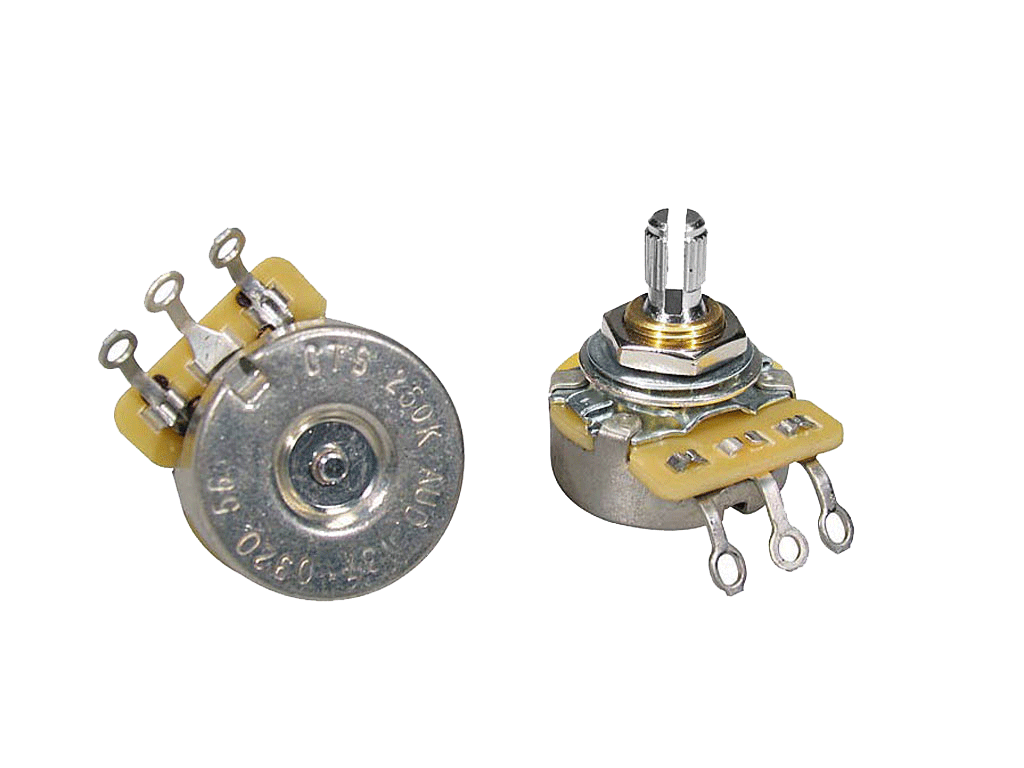

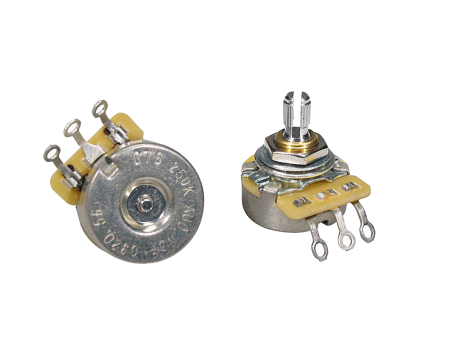

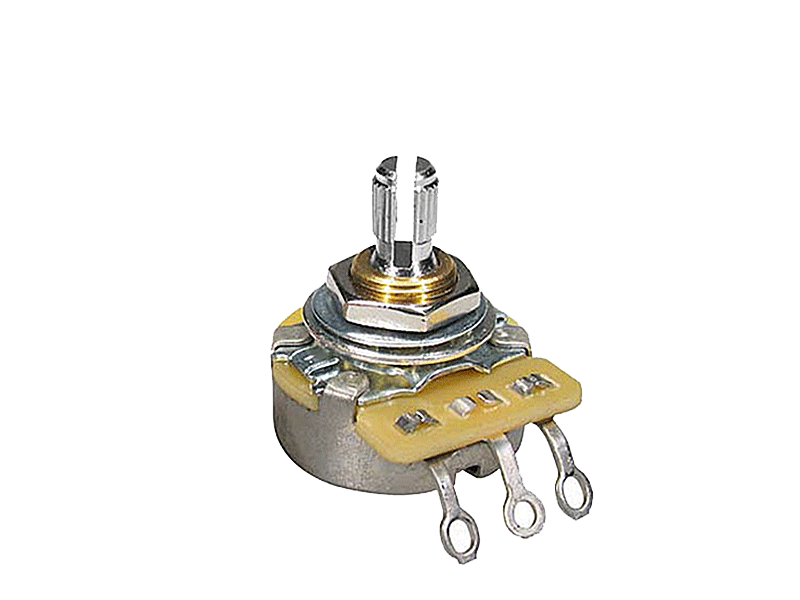

CTS guitar pot 250K audio (short)
Dispatched within:
1 day
Rating:
4.5
4.5
Brand:
Description
First class, excellent potentiometers used by the best guitar producers. The short type potentiometers are perfect for pickguards and control plates. Application: Logarithmic potentiometers are commonly used to the volume control while linear are used to the tone control. 250K pots are most often used with single-coil pickups, 500K with humbuckers.
Technical data
| Value | 250K |
| Characteristics | Audio |
| Knurl Type | 24 Spline (inch) |
| Pot Diameter | 24mm |
| Thread | #3/8-32NEF |
| Shaft Height | Short (15mm) |
| Torque | Standard |
