Description

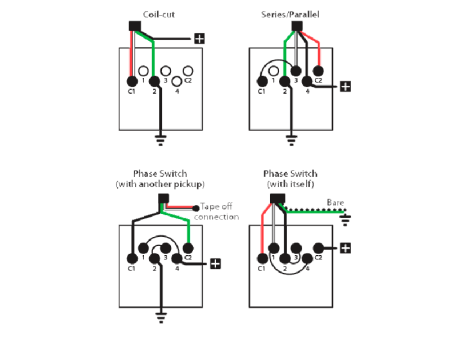

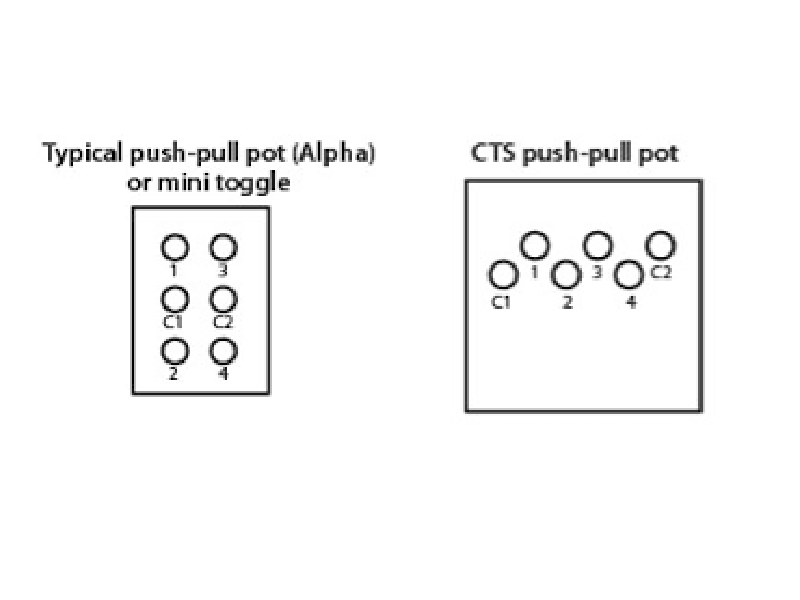

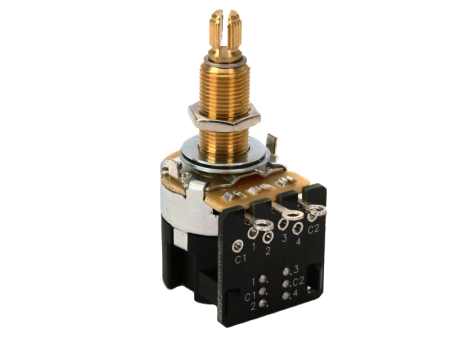

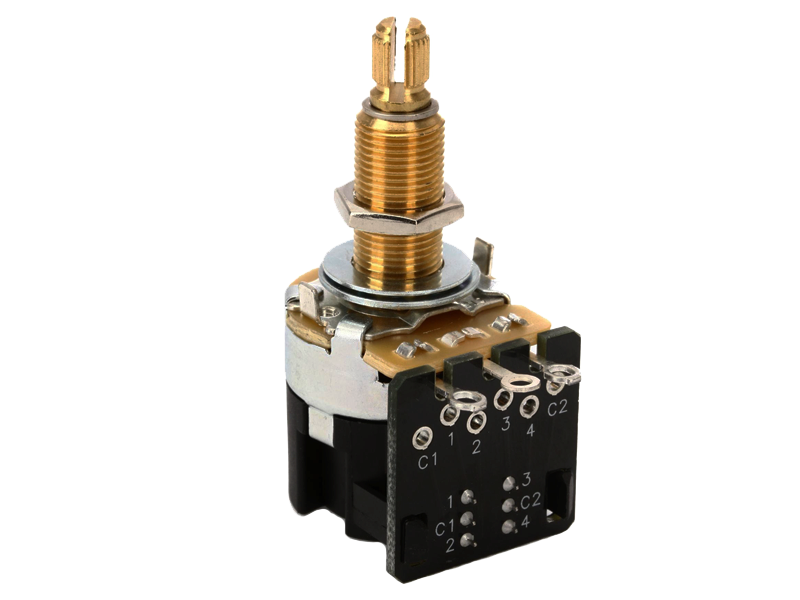

Add a switch to your guitar using the existing holes in your pick guard or body. High quality CTS Push/Pull DPDT switches can be used to add phase switching, coil tapping, series/parallel, etc. to your guitar without having to drill the holes for a mini switch. The shorter body height and side mounted contacts require far less space (1” depth ) making them ideal for thinner bodied guitars with a more shallow body cavity. These Split-shaft pots are compatible with 24- spline, fine knurled knobs and feature a precise audio taper. Hex nuts, flat washer, and lock washer are included with each pot. CTS DPDT pots are available in three types for different applications.
Technical data
Value | 500K |
Characteristics | Audio |
Knurl Type | 24 Spline (inch) |
Pot Diameter | 24mm |
Thread | #3/8-32NEF |
Shaft Height | Long (26mm) |
Torque | Standard |
