Brand

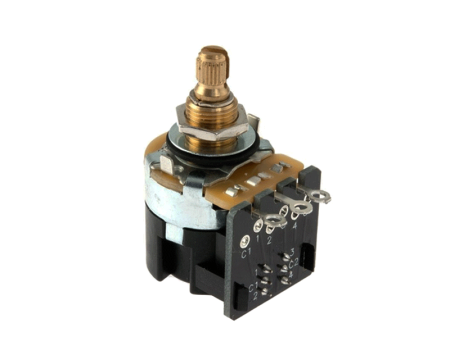

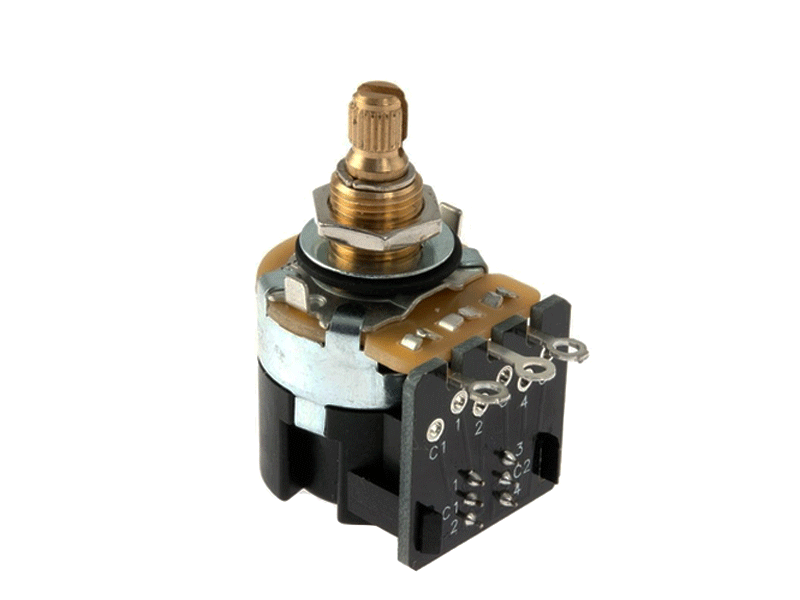

CTS 250K push-pull audio pot (std)

Dispatched within: 1 day
Price: €17.86
incl. 23% TAX, excl. shipping costs
17.86
quantity pc

product unavailable

add to wish list
Klarna baner

Description

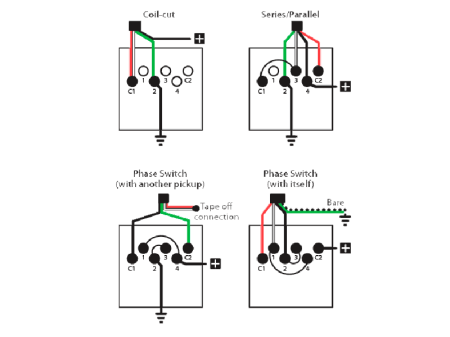

Add a switch to your guitar using the existing holes in your pick guard or body. High quality CTS Push/Pull DPDT switches can be used to add phase switching, coil tapping, series/parallel, etc. to your guitar without having to drill the holes for a mini switch. The shorter body height and side mounted contacts require far less space (1” depth ) making them ideal for thinner bodied guitars with a more shallow body cavity. These Split-shaft pots are compatible with 24- spline, fine knurled knobs and feature a precise audio taper. Hex nuts, flat washer, and lock washer are included with each pot. CTS DPDT pots are available in three types for different applications.

Technical data

Value 250K
Characteristics Audio
Knurl Type 24 Spline (inch)
Pot Diameter 24mm
Thread #3/8-32NEF
Shaft Height Standard (18mm)
Torque Standard
