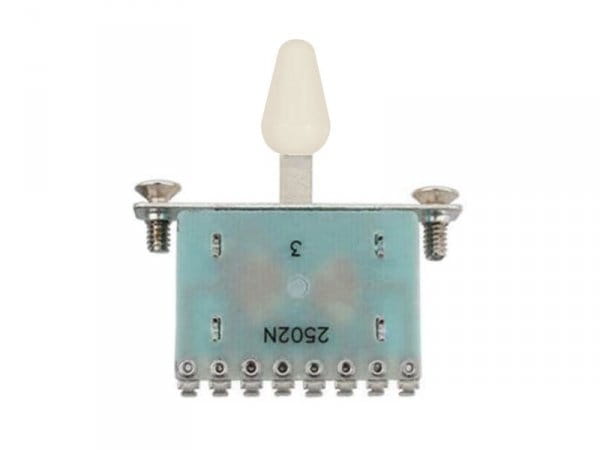

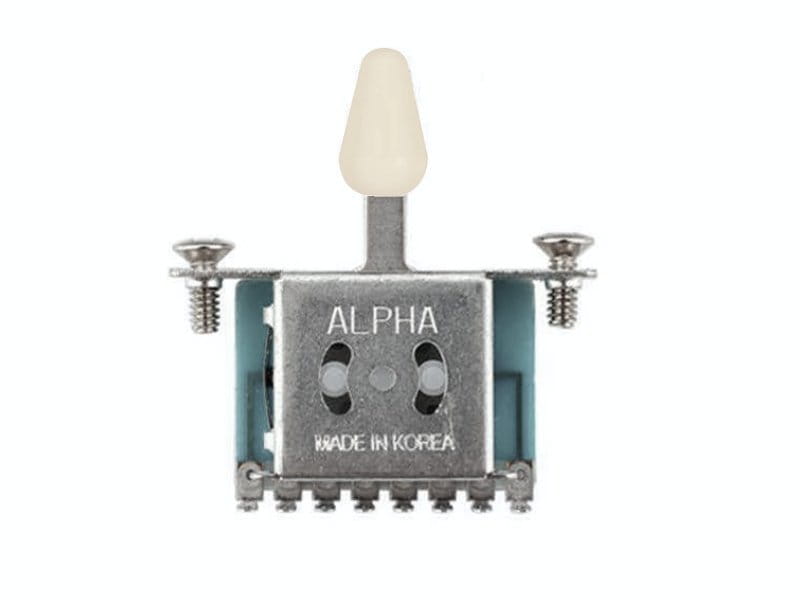

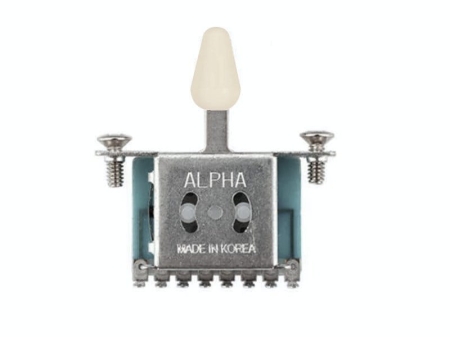

ALPHA SW-2502N 5-Way Lever Switch (ADWH)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: SW-LEV-5-2502N-ADWH
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Ask about the product
Administratorem danych osobowych jest IN TUNE Robert Wultański. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Share the product card
Product Description
Good quality 5-position slide switch for electric guitar.

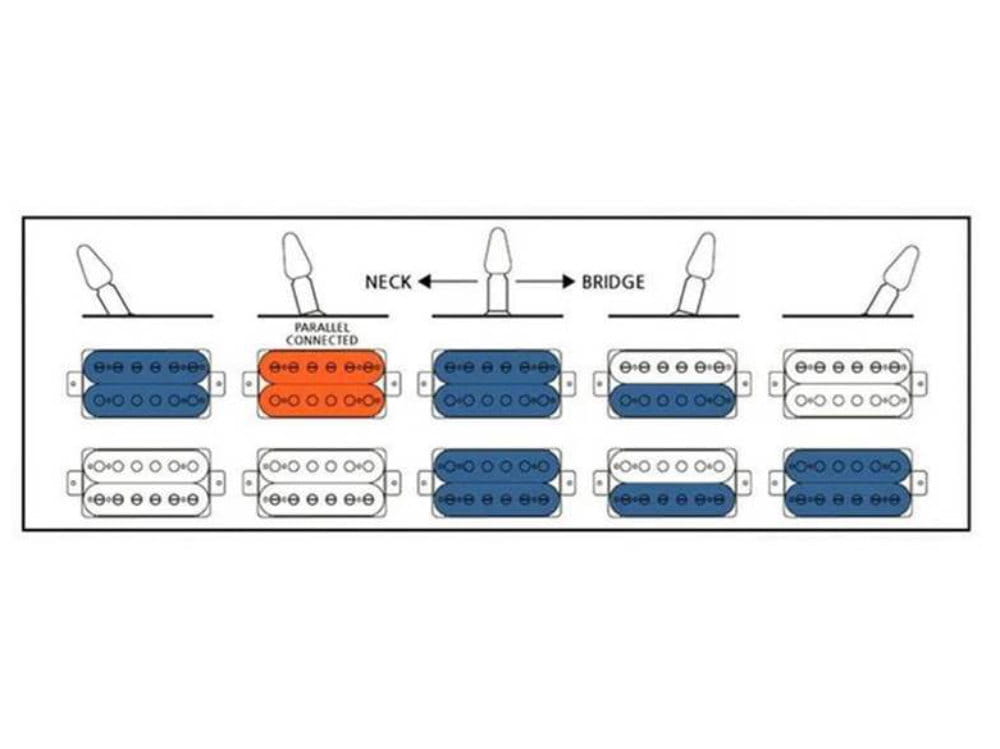

Ideal for guitars with HH pickups, it allows you to obtain additional sounds that are not available with a classic switch. A different connection system inside the switch allows you to split coils in position 2 and connect the coils in parallel in position 4. This is a very popular system in guitars of the well-known Japanese brand, and the ALPHA switch can be used as a replacement for the original part.

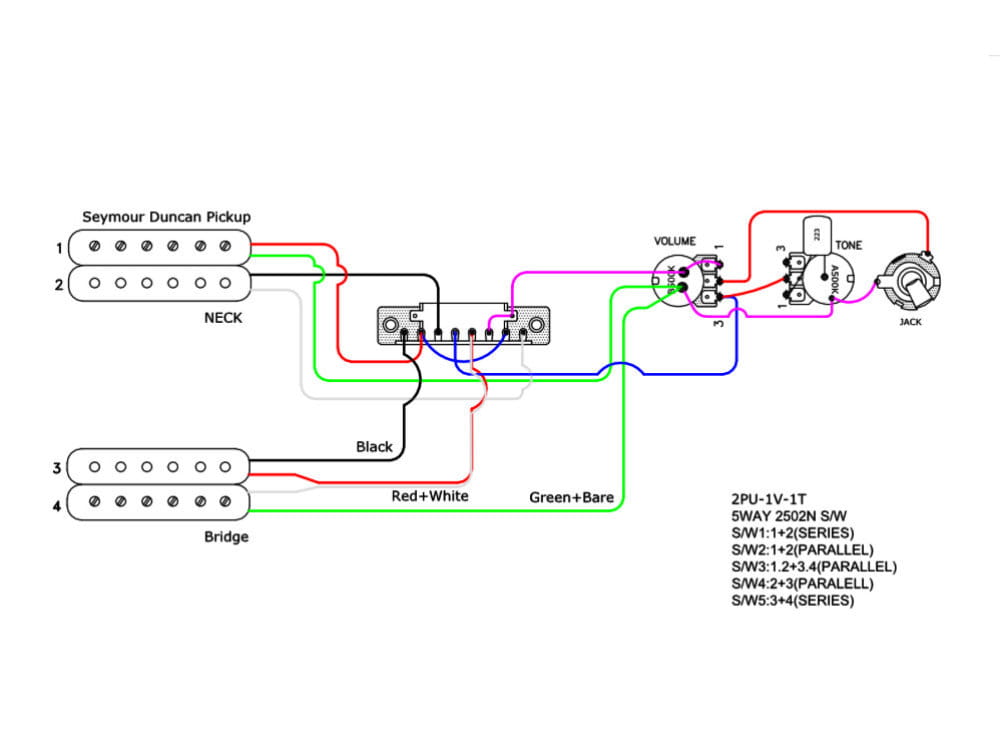

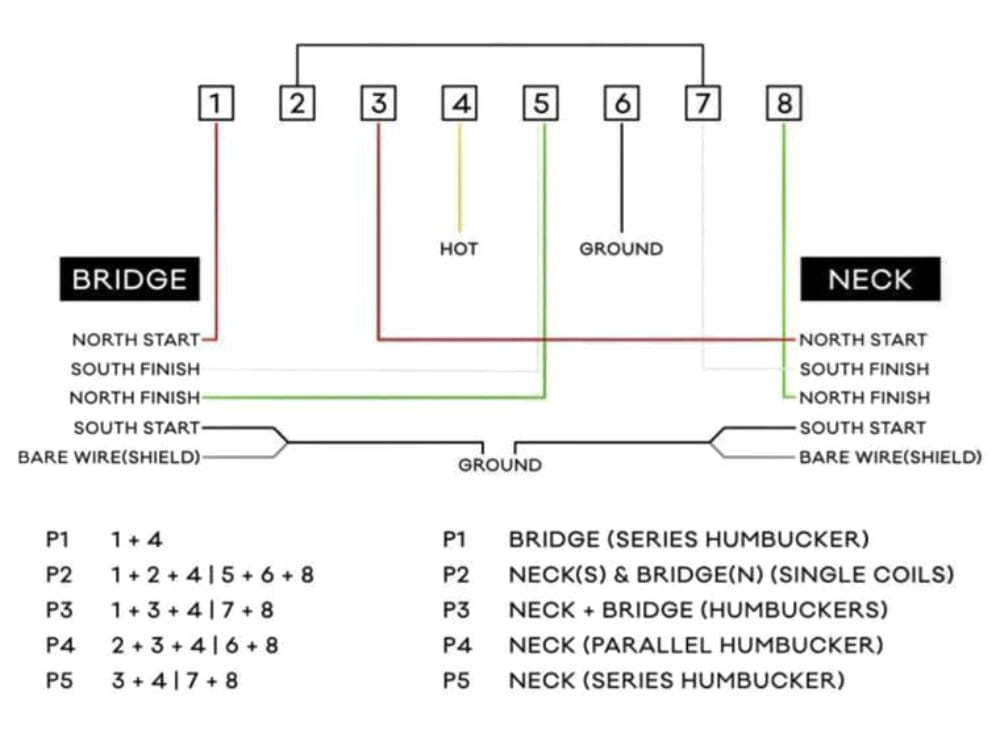

The method of connecting the switch legs and typical soldering diagrams are in the attached graphics.

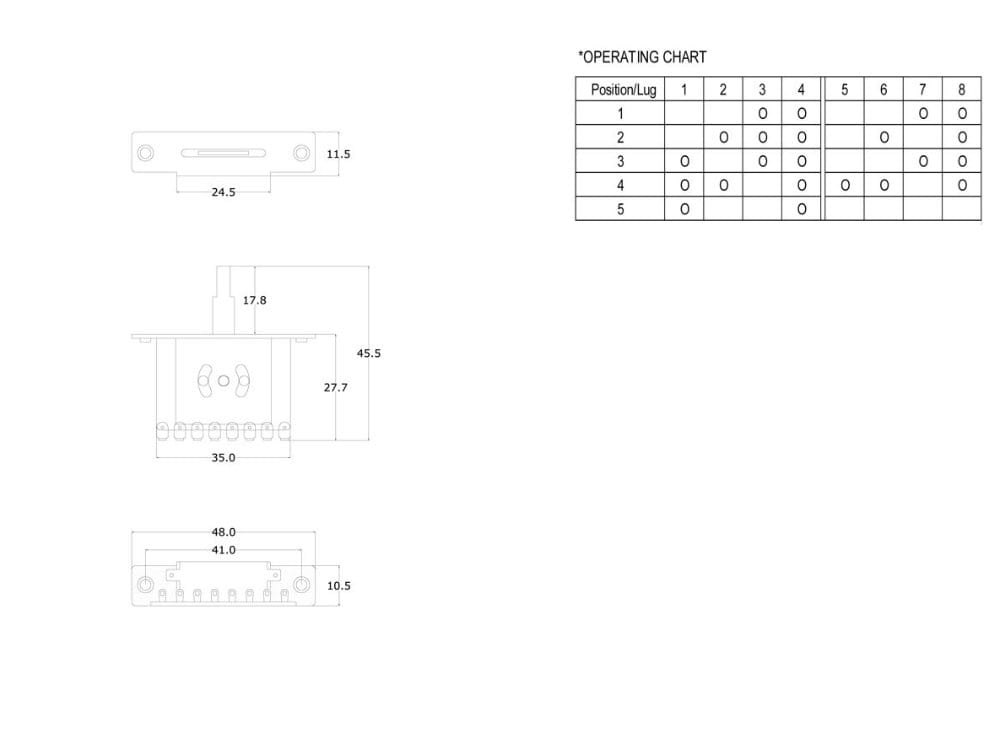

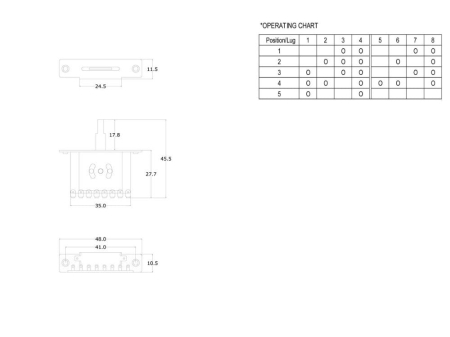

Mounting screw spacing: 41.0mm.
Product code: SW-2502N-ADWH
Specification
Switch type
- Switch Knob Type Asia (metric)
Switch Type - Lever
- Lever Switch Type 5-way
Switch Colour
- Switch Colour Nickel (N)
- Tip Colour Aged White
